Model: PY-S13

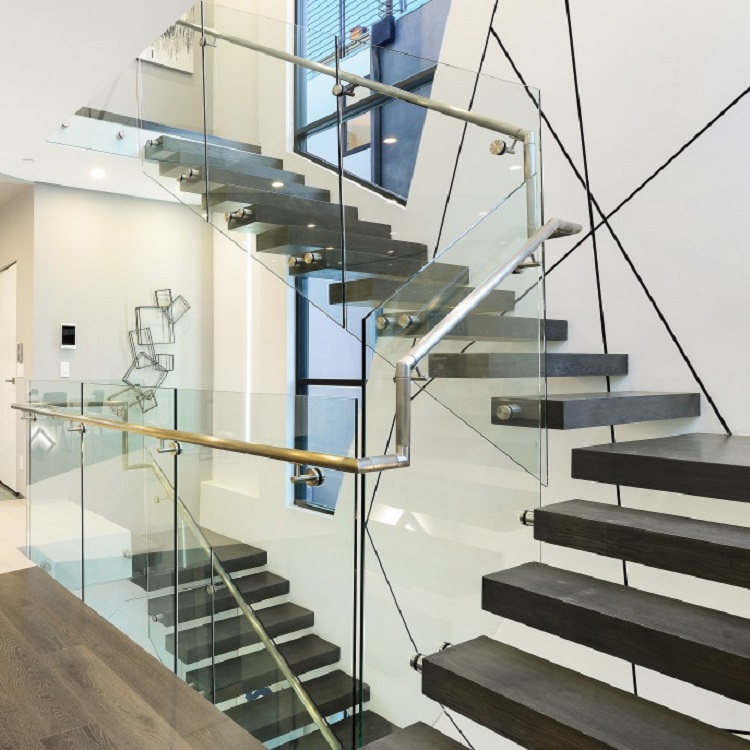

Steps protrude from one side stringer. The side stringer is secured to a side wall, and the side wall is reinforced to structurally support a cantilevered stair. The stair structure should be installed before the wall is finished. Site welding is required.The stringer may be painted and remain visible, but in most cases the wall is furred out to allow the wall finish to run over the stringer. Only steps protruding from the wall are visible.In its simplest form the steps consist of steel plates only. Most often the steps are completely wrapped with box like wood liners so the steel is not visible and the steps resemble wood slabs emerging from the wall.
| Floor to floor height | Customized |
| Risers | 150-200mm |
| Stair Width | Customized |
| Clear Tread Width | Customized |
| Tread Type | 80mm Walnut – Painted/ other wood type is also available |
| Balustrade Type | 12mm tempered clear glass with diameter 42.4mm 304s.s standoff and glass spider fixings-Brushed |
| Handrail | Frameless/No handrail |
| Stringer | 300*100*10mm stringer |
| Finish of Steel | Galvanized + Powder Coated Carbon Steel Brushed/Polished Stainless Steel |
| Additional | All main components can be customized |
To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:
· Steel Riser Bars
· L shaped treads with timber downstand
· Half Glass Riser Pieces
· Full Glass Riser
· Full closed risers with timber
The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
