Model: PY-S01

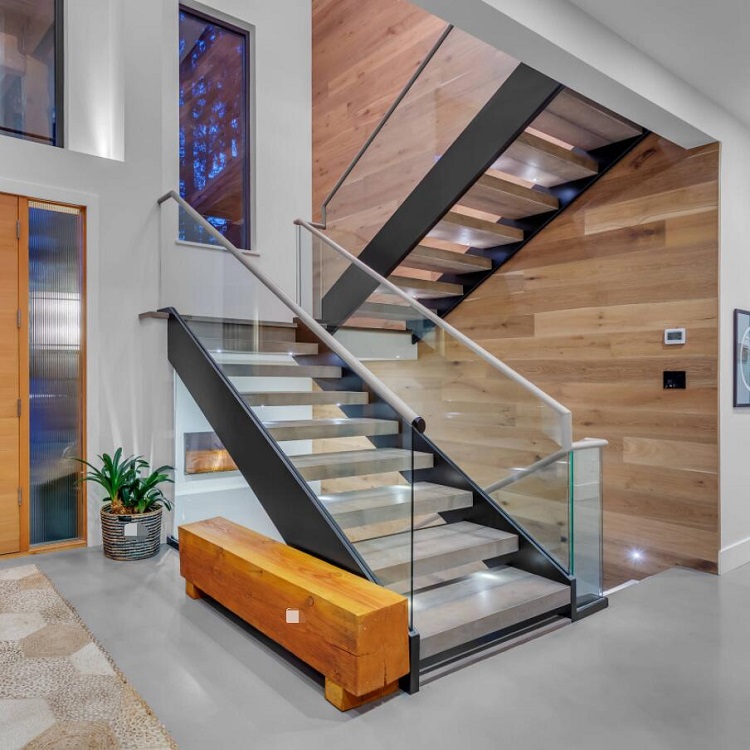

The structure consists of 12mm(6+6mm) steel stringers either side of hardwood treads put directly into the stringer.
These stringers are powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.
Treads are either supplied matt varnished, oiled or stained in the factory and sometimes left untreated to be stained on site.
The balustrade itself is in-filled by either:
Vertical Steel Spindles
Horizontal Stainless Steel Rails
Framed Glass Infill Panels With Stainless Post
Frameless Glass Panels Bolted Directly To The Side Of The Hardwood Treads
| Floor to floor height | Customized |
| Risers | 150-200mm |
| Stair Width | Customized |
| Clear Tread Width | Customized |
| Tread Type | 40mm Oak – Painted |
| Balustrade Type | 12mm tempered clear glass |
| Handrail | diameter 50.8mm fascia mounted 304s.s handrail-Brushed |
| Stair Stringer | 300*12mm(6+6mm) U Channel |
| Finish of Steel | Galvanized + Powder Coated Carbon SteelBrushed/Polished Stainless Steel |
| Additional | All main components can be customized |
To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:
· Steel Riser Bars
· L shaped treads with timber downstand
· Half Glass Riser Pieces
· Full Glass Riser
· Full closed risers with timber
The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
