Model: PY-S04

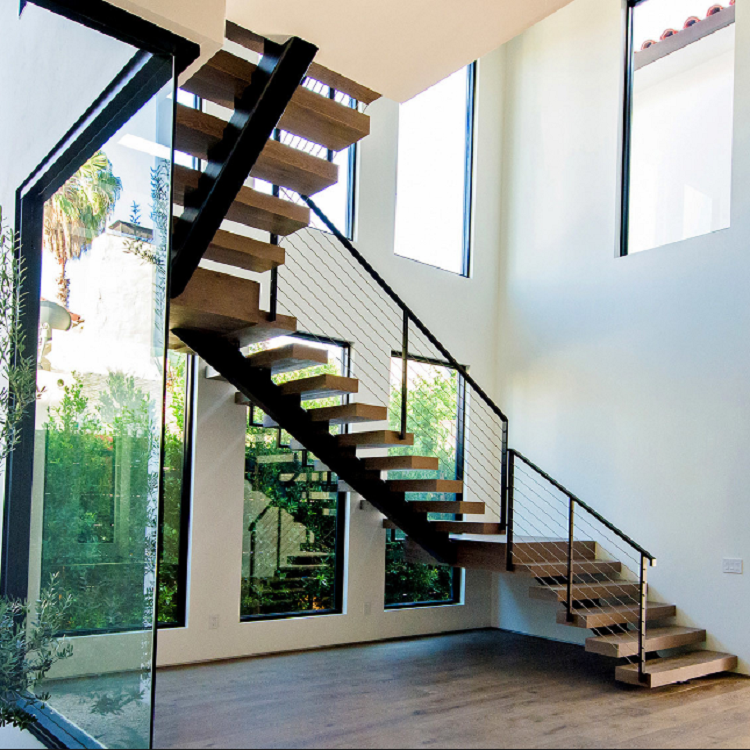

The structure consists of 200*150mm steel pipe beam, the side of the stainless steel cable railing post bolted directly into the hardwood treads.The center pipe beam is powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.
Treads:Rubber wood(Thailand Oak),Oak, Beech, Maple, Ash, Birch, Walnut, Teak.
Treads are either supplied matt varnished, oiled or stained in the factory and sometimes left untreated to be stained on site.
The balustrade itself is in-filled by either:
Vertical Steel Spindles
Horizontal Stainless Steel Rails
Framed Glass Infill Panels With Stainless Post
Frameless Glass Panels Bolted Directly To The Side Of The Hardwood Treads
| Floor to floor height | Customized |
| Risers | 150-200mm |
| Stair Width | Customized |
| Clear Tread Width | Customized |
| Tread Type | 40mm Rubber Wood – Painted |
| Balustrade Type | diameter 4mm horizontal 304 s.s cable with carbon steel vertical post-Brushed/Powder Coated |
| Handrail | 40*60mm solid rubber wood top handrail-Painted |
| Centre Beam | 200*150mm pipe |
| Finish of Steel | Galvanized + Powder Coated Carbon SteelBrushed/Polished Stainless Steel |
| Additional | All main components can be customized |
To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:
· Steel Riser Bars
· L shaped treads with timber downstand
· Half Glass Riser Pieces
· Full Glass Riser
· Full closed risers with timber
The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
