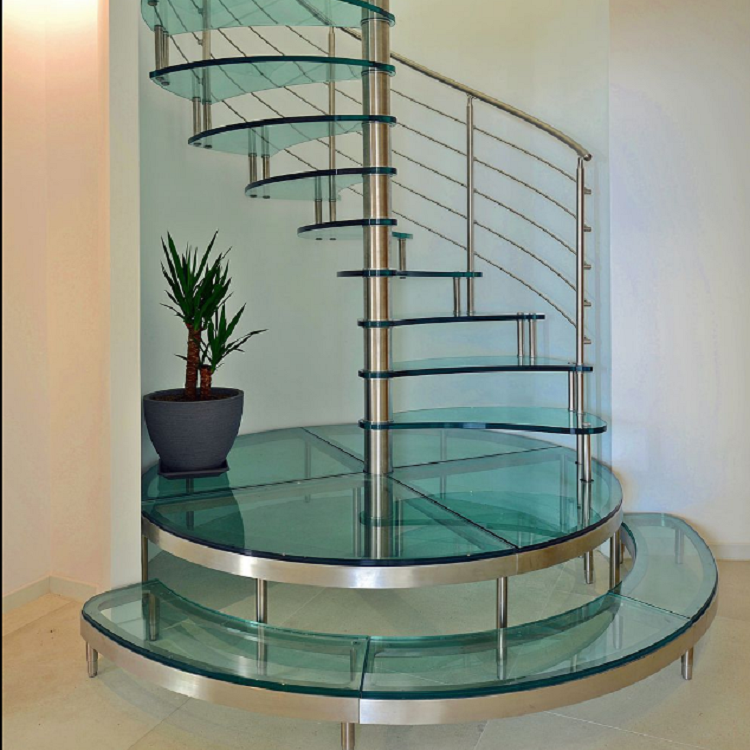

Glass tread spiral staircase round stairs with stainless steel railing
  • Glass tread spiral staircase round stairs with stainless steel railing
Glass tread spiral staircase round stairs with stainless steel railing

Glass tread spiral staircase round stairs with stainless steel railing

Model: PY-SS10

Glass tread choice:

Laminated Tempered Clear Glass; Laminated Tempered Frosted Glass

The balustrade itself is in-filled by either :

Vertical Steel Spindles
Horizontal Steel Rails
Curved Glass Panels
Curved Perforated Steel Panels

The handrail and newel posts on this spiral staircase are made in steel to match the other elements. Finish of the steel tends to be powder coated although we can offer polished stainless or brushed stainless finish. The tread is tempered frosted glass.


Product Details
Floor to floor heightCustomized
Risers150-210mm
Spiral Diametermin. 1300mm
Clear Tread WidthCustomized
Tread Type

12+1.52+12mm laminated tempered clear/frosted glass

10+1.52+10+1.52+10mm triple laminated tempered clear/frosted glass

Balustrade Type12mm tempered clear glass
HandrailDiameter 50.8mm 304s.s fascia mounted handrail with bracket– Brushed
Centre Column

102*4mm carbon steel column(unfinished)with 114*4mm stainless steel cover column-Powder Coated

300*12mm carbon steel U channel stringer-Powder Coated

Finish of Steel

Brushed/Polished Stainless Steel

Powder Coated Steel
