Model: PY-SS11
Timber tread choice: checkered steel plate
The balustrade itself is in-filled by either :
Vertical Steel Spindles
Horizontal Steel Rails
Curved Glass Panels
Curved Perforated Steel Panels

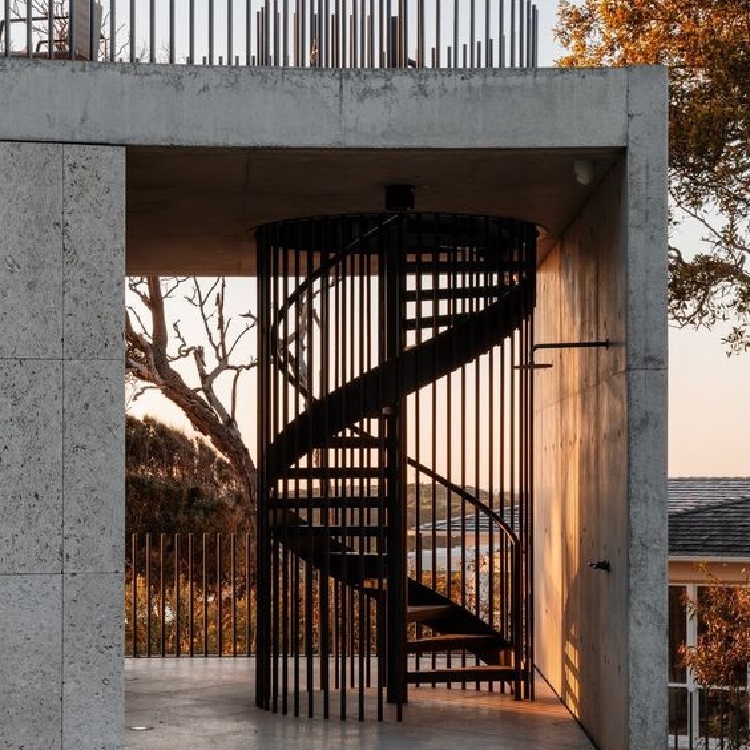

The handrail and newel posts on this spiral staircase are made in timber or steel to match the other elements. Finish of the steel tends to be brushed stainless although we can offer polished stainless or a powder coated finish. The timber is oiled, varnished or stained in the factory and sometime left untreated to be stained on site.
| Floor to floor height | Customized |
| Risers | 150-210mm |
| Spiral Diameter | 1300mm |
| Clear Tread Width | Customized |
| Tread Type | checkered steel plate |
| Balustrade Type | 8mm rod bar railing with diameter 38mm carbon steel vertical spindles-Powder Coated |
| Handrail | Diameter 50.8mm 304s.s round handrail– Brushed |
| Centre Column | 76*4mm carbon steel column with 114*4mm cover column;300*12mm side stringer-Powder Coated |
| Finish of Steel | Brushed/Polished Stainless Steel Powder Coated |
