PY-GSB27

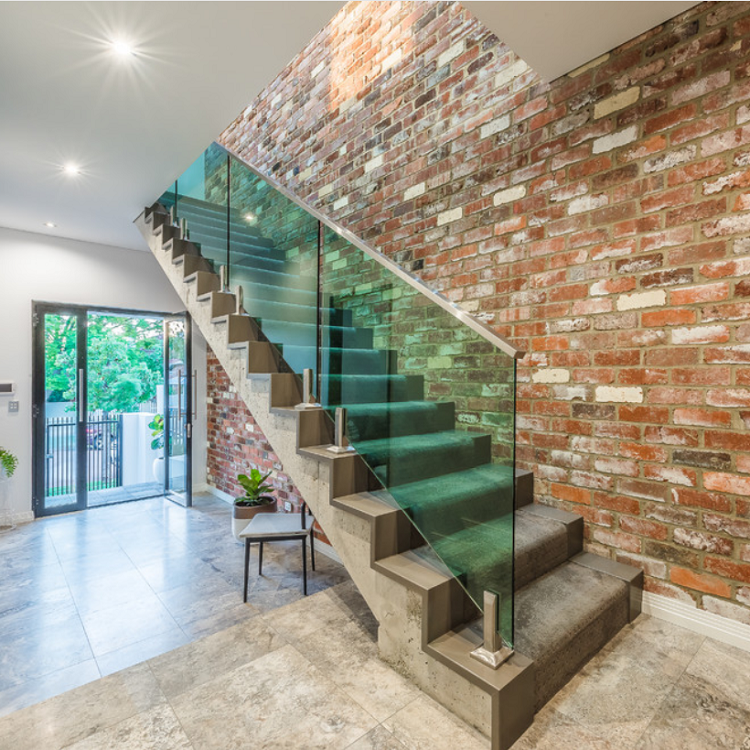

Frameless glass balustrading normally refers to having no surrounding material on at least three of the four sides of each panel.
In some countries require a top rail on every balustrade protecting a fall of greater than 3' 31/2''(1000mm), thus a top rail sits on top of the balustrading or it can be an offset rail attached to the inside of the glass.
The glass panels are often supported by spigots. The glass we use is 1/2''(12mm) clear toughened glass and panels spans are up to 1500mm wide, depending on the length of run.
| Maximum Centers | 1500mm | Finish | Satin or Mirror |
| Stainless Steel Grade | Grade 304(Internal)Grade 316(External) | Glass Option | Clear, Frosted or Tinted |
| Spigot Spec. | dia. 42/50mm round shape 50*50mm square shape | Base Plate | Welded |
| Standard Height | USA: 36'' or 42'' or customized; Austrlia:1m or customized; Europe: 110-120cm or customized' The height can be to the top of the rail or to the top of glass if it's frameless design | Compatible Fixings | Wood,Metal,Brick&Concrete |
Spigot & Glass Measurements | Made To Measure(Price Vary) | Spigot Construction | Weld Base Plate, casting made |
| Glass Thickness | 12mm Toughened,6+1.52+6mm Laminated | Mount Type | Top Or Fascia Mount |
If you're looking for a modern, stylish and safe way to finish off your balcony, stairs and voids, then look no further than glass balustrading. Not only does frameless glass balustrading and semi-frameless glass balustrading provide a sleek and sophisticated look, it will also leave you with unobstructed views.
